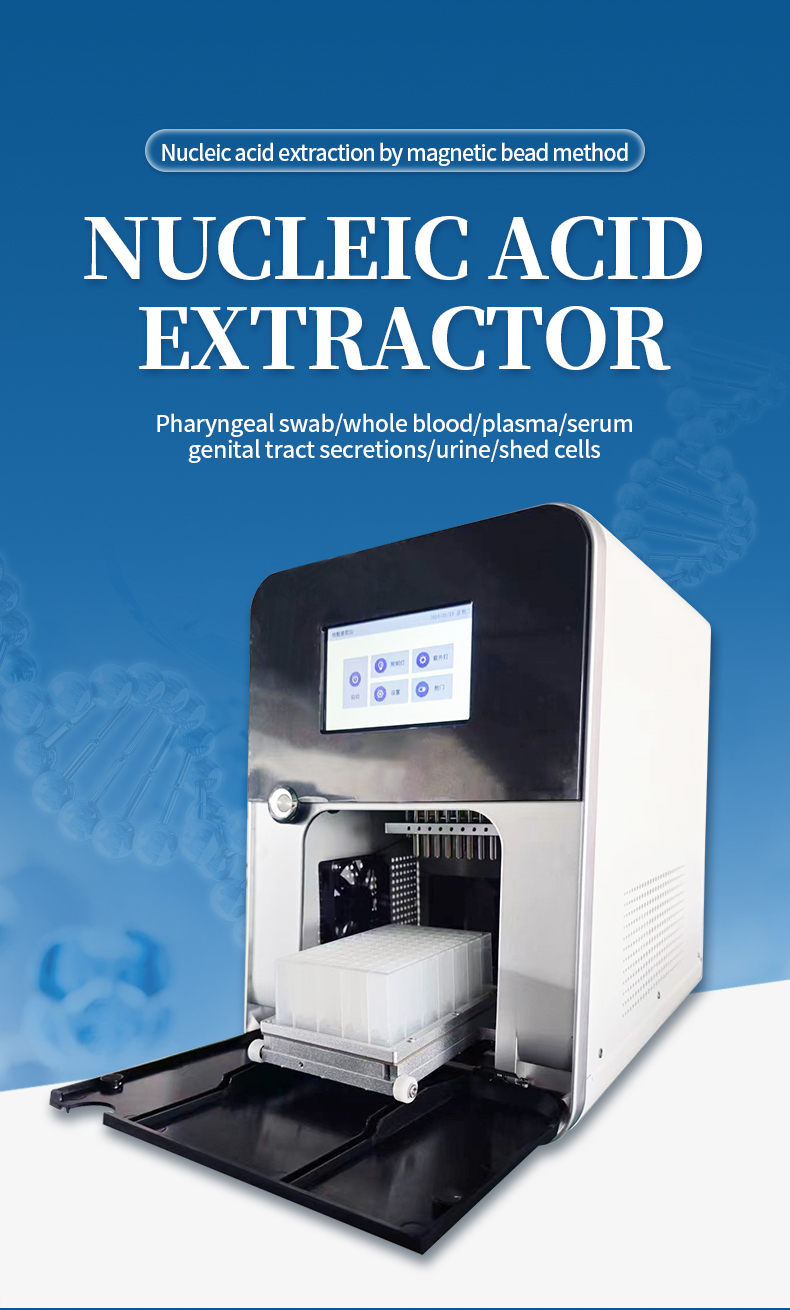

4-Flux Nucleic Acid Extractor HM-TQ04

Product Overview:

The nucleic acid extractor extracts nucleic acids through magnetic bead method, and selects the corresponding reagent kit to automatically separate and purify high-purity nucleic acids from various sample materials such as blood, tissues, and cells. It has the advantages of strong compatibility (compatible with pre packaged extraction reagent kits or single head reagents), fast extraction speed, high extraction recovery rate, and easy operation, making it a powerful "assistant" for molecular biology laboratory testing. It can be widely applied in fields such as scientific research, molecular diagnosis, and detection of animal and plant diseases.

Product Features:

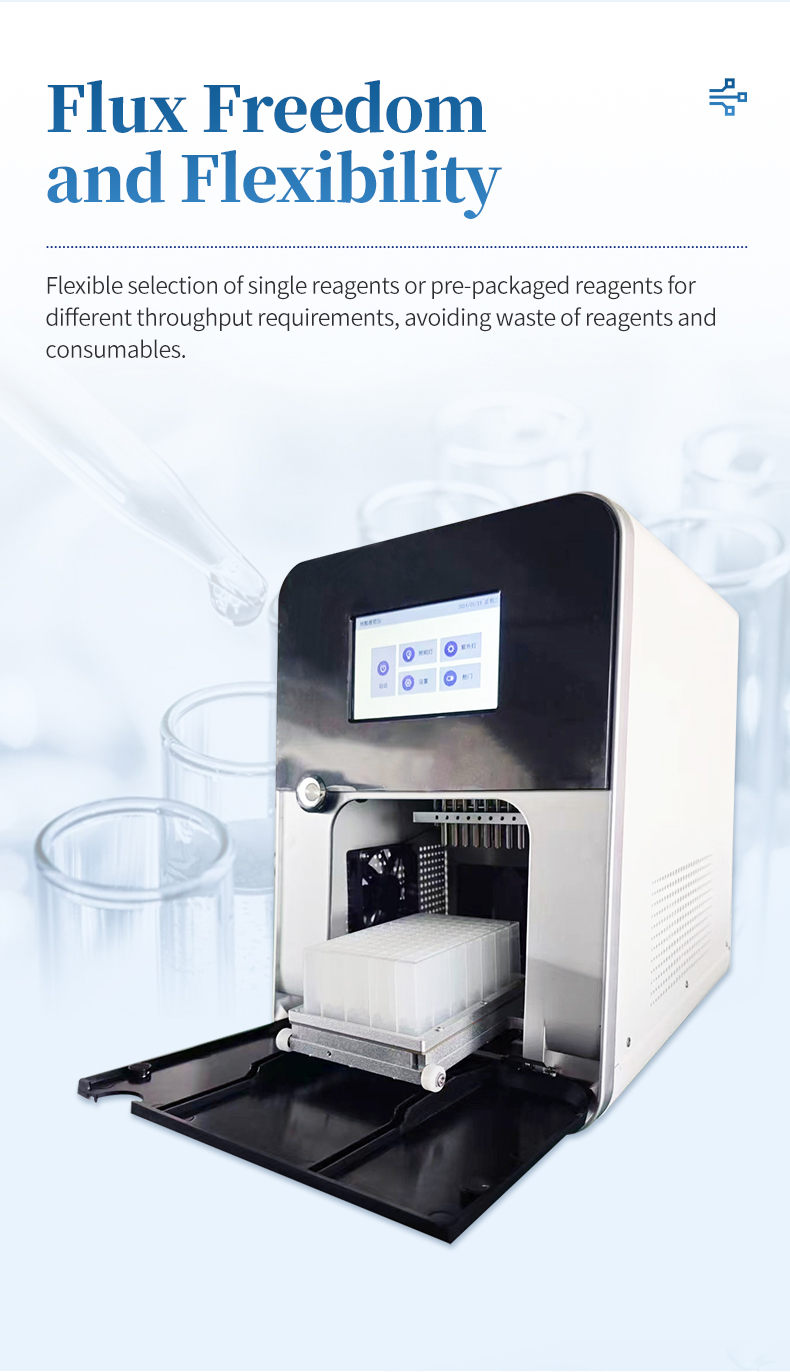

● Free and flexible flux

For extraction requirements with different fluxes, single dose reagents or pre packaged reagents can be flexibly selected to avoid waste of reagent consumables.

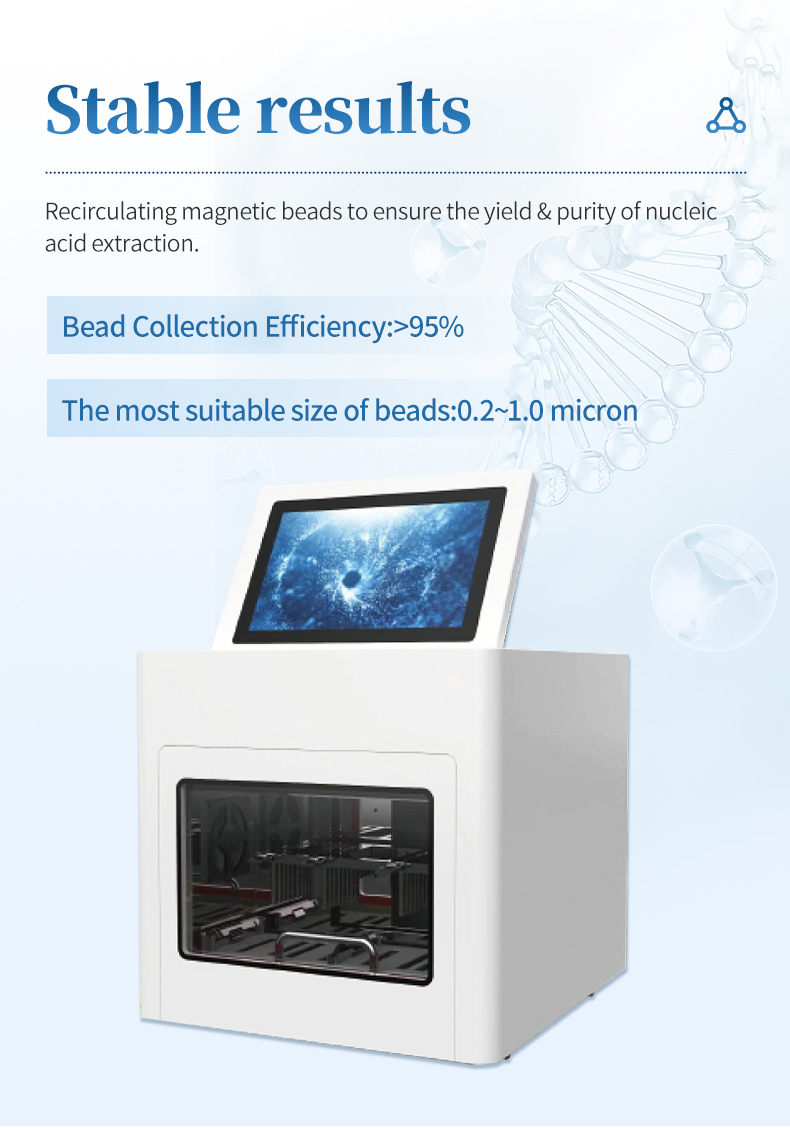

● Stable results

Circulating magnetic beads ensure the yield and purity of nucleic acid extraction.

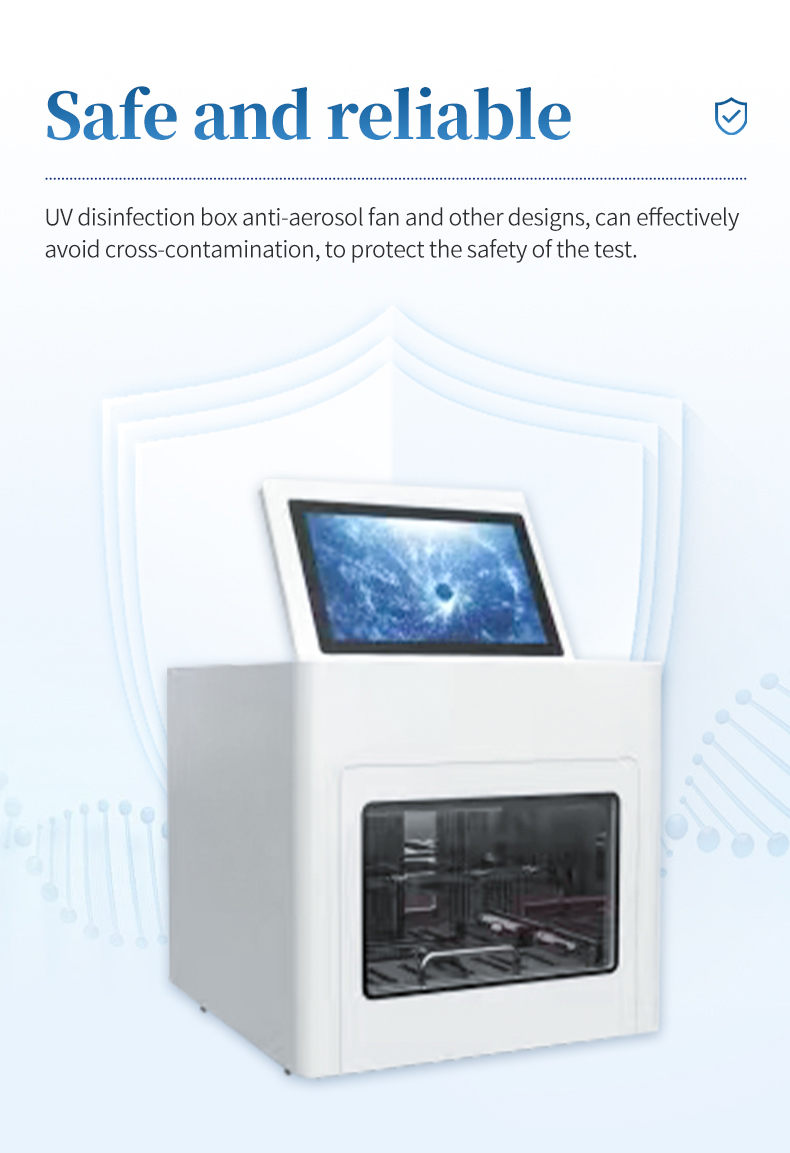

● Safe and reliable

The design of UV disinfection box, anti aerosol fan, etc. can effectively avoid cross contamination and ensure the safety of the experiment.

● Simple design, compact and portable

Compact in size, supporting battery power supply, suitable for automated extraction needs in various environments such as the field and laboratory.

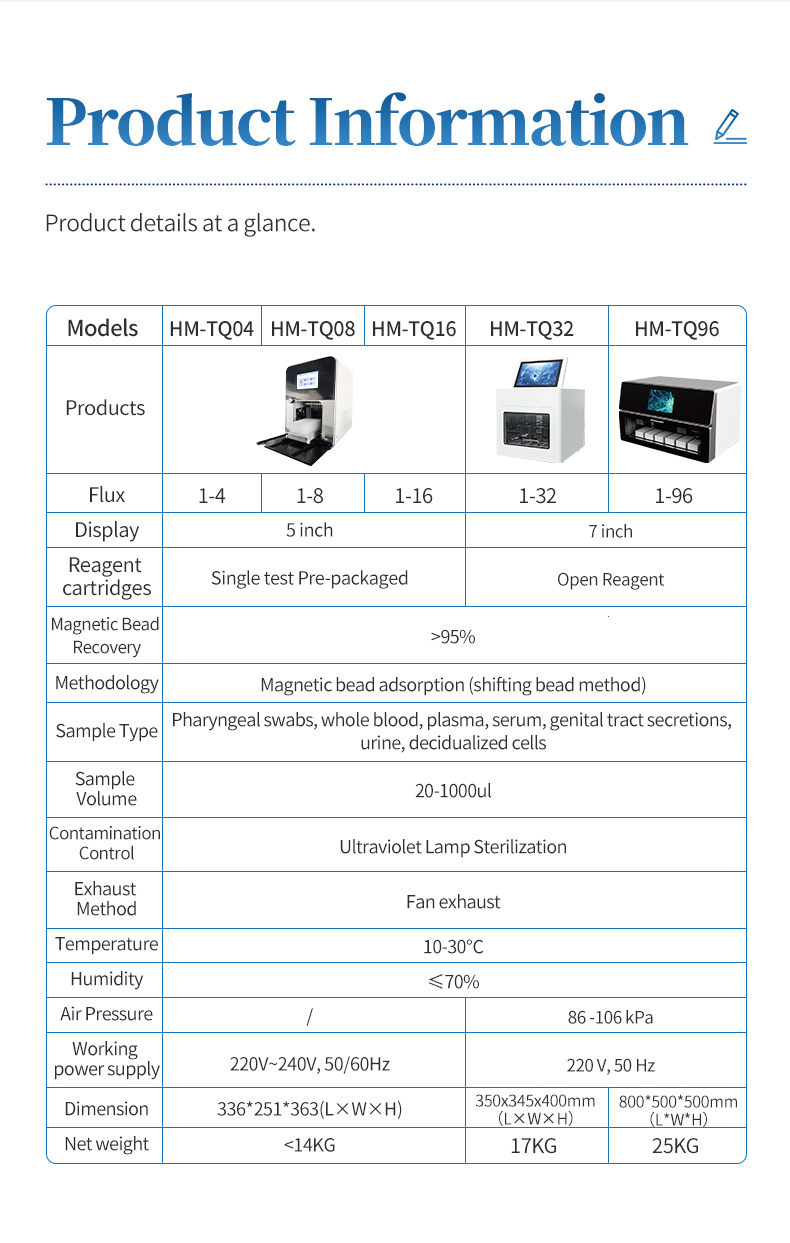

Technical performance:

Instrumentation Methodology: Magnetic Bead Adsorption (Magnetic Bead Transfer Method)

Sample types: throat swabs, whole blood, plasma, serum, genital secretions, urine, exfoliated cells, etc

Sample volume: 20-1000ul

Magnetic bead recovery rate:>95%

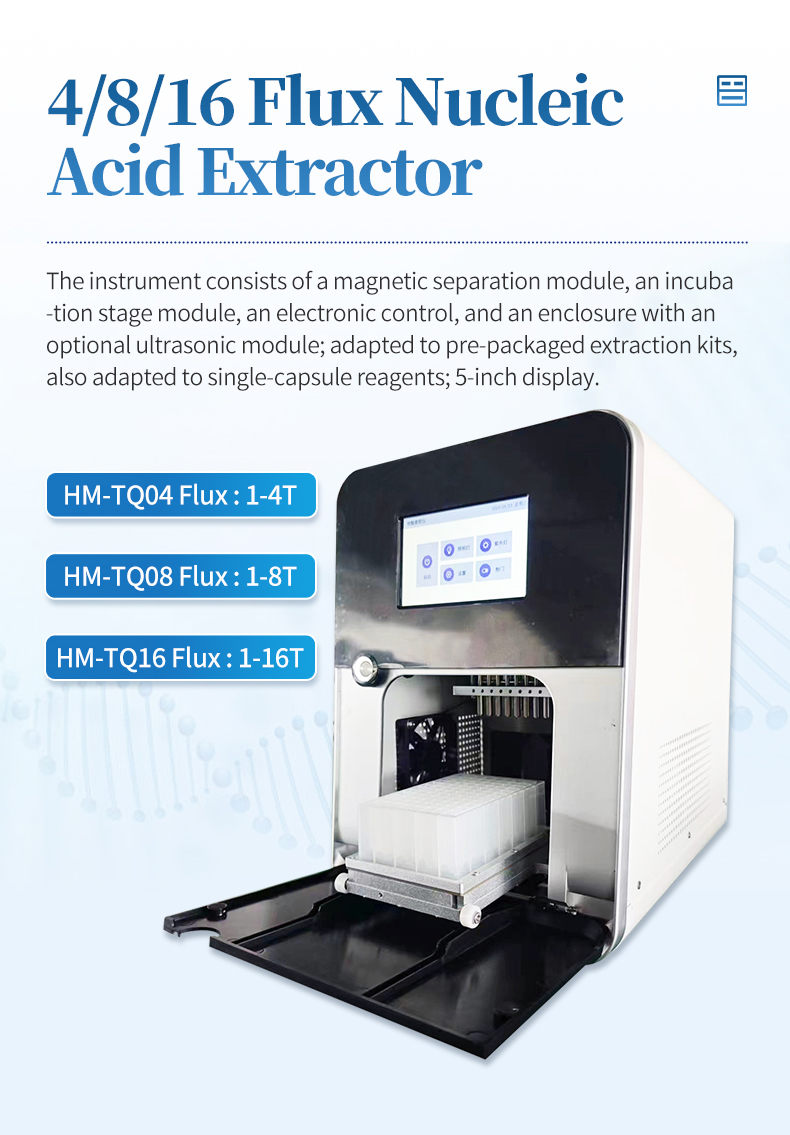

Instrument structure: mainly composed of magnetic separation module, incubation platform module, electronic control, and shell. Optional ultrasound module is available

Experimental program: User programmable

Kit: Single Test Pre Encapsulation

Flux: 1-4T

Monitor: 5 inches

Pollution prevention: UV lamp disinfection and fan exhaust system

Operating environment: Temperature: 10-30 ℃ Humidity: ≤ 70%

Working power supply: 220V~240V, 50/60Hz

Overall dimensions: 336 * 251 * 363 (length, width, height)

Net weight: less than 14KG
