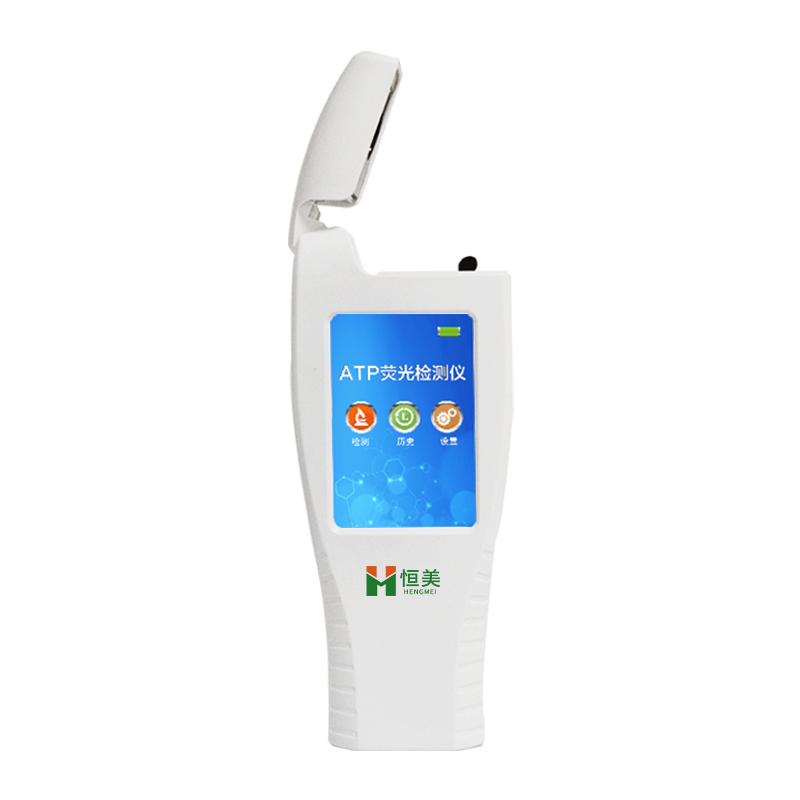

HM-ATP Portable ATP Hygiene Monitoring System for Food Safety and Healthcare Surface Cleanliness HM-ATP

Product Introduction

In food processing facilities where a single contamination event can trigger costly product recalls, and in hospitals where healthcare-associated infections affect 1 in 31 patients daily, the gap between cleaning and knowing whether cleaning worked has historically been measured in days. The HM-ATP ATP Fluorescence Detector from HM Instruments closes this gap to 15 seconds.

Designed as the accessible entry point into professional ATP hygiene monitoring, the HM-ATP combines a 32-bit high-speed processing chip, a 3.5-inch high-precision graphical touchscreen, and ATP bioluminescence detection sensitivity down to 1×10⁻¹⁸ mol into a compact handheld instrument. This is the foundational model in the ATP detector family—delivering the core detection performance organizations need for real-time hygiene management without the advanced connectivity and data features of higher-tier models. For facilities establishing their first ATP monitoring program or expanding testing coverage across multiple locations, the HM-ATP provides the essential capability at an attractive price.

Applications

• Pre-Operational Food Safety Verification: Before each production shift, quality teams test food contact surfaces—conveyor belts, filling nozzles, cutting blades, mixing vessels—and receive pass/fail results in 15 seconds. Contaminated surfaces are re-cleaned immediately; production starts only after all CCPs meet cleanliness thresholds.
• Healthcare Terminal Cleaning Validation: After patient discharge, environmental services teams test high-touch surfaces—bed rails, call buttons, IV poles, over-bed tables—to verify terminal cleaning effectiveness. Failing surfaces are immediately re-cleaned and re-tested, ensuring rooms are truly ready for the next patient.
• Cooling Tower and Process Water Screening: Regular ATP monitoring at key water sampling points provides immediate feedback on biocide treatment efficacy and early warning of developing biofilm issues, enabling intervention before microbial levels reach critical thresholds.
• Allergen Cross-Contact Prevention: In multi-product food facilities, ATP testing after cleaning provides objective verification that organic residue has been effectively removed, adding a critical layer of consumer protection between allergen-specific testing cycles.
• Regulatory Inspection and Customs Screening: For government inspectors and customs officials, the HM-ATP provides an immediate, objective hygiene assessment tool that replaces subjective visual inspection with quantitative data.

Key Features & Advantages

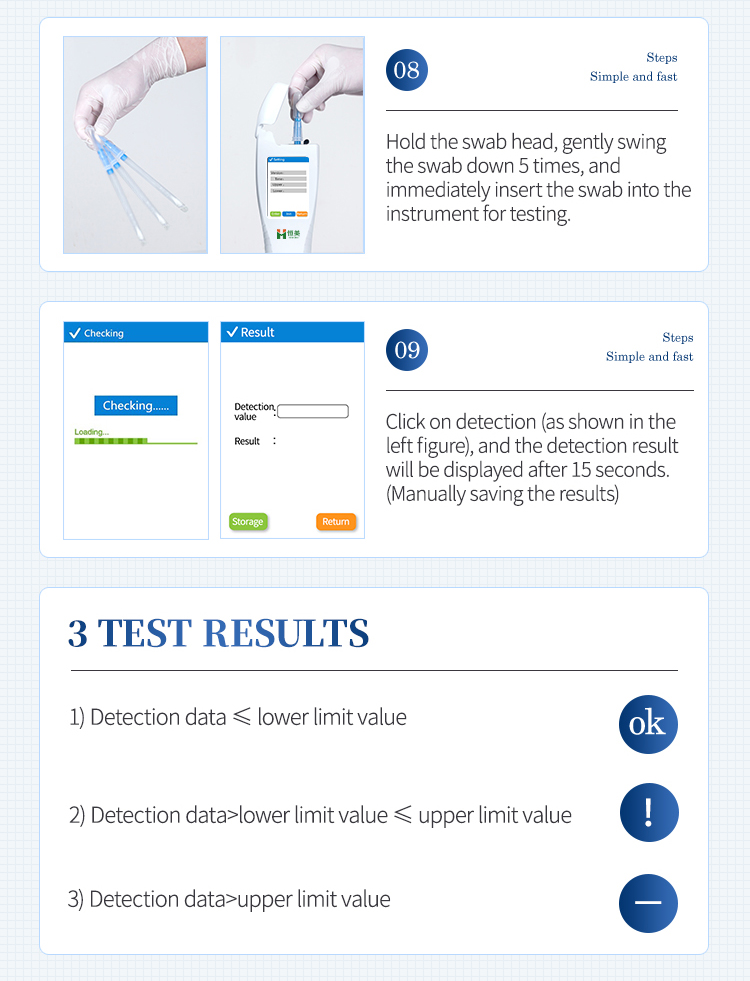

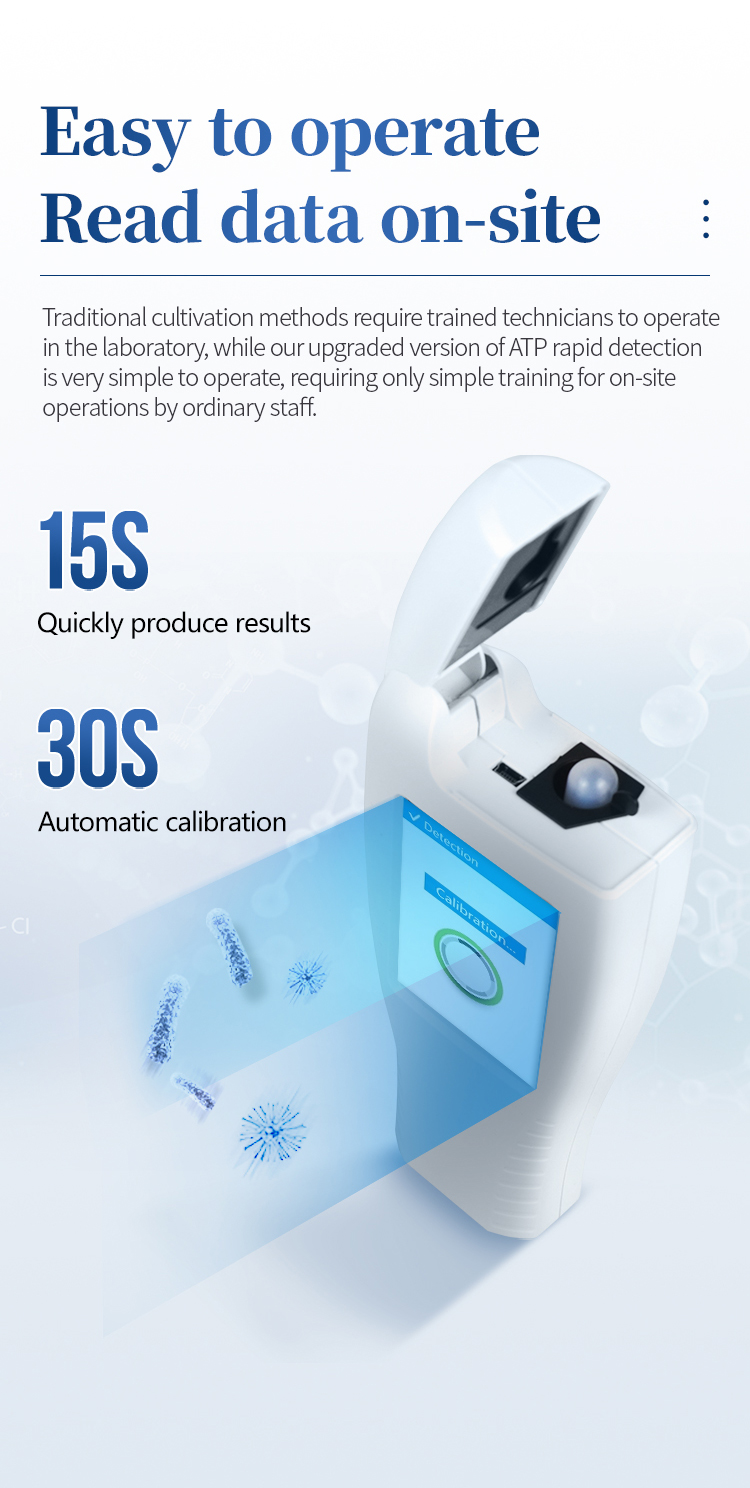

1. 15-Second Real-Time Results: Transforms hygiene verification from retrospective documentation into real-time operational control. Immediate pass/fail feedback enables corrective action before production continues or patients occupy rooms.
2. Detection Sensitivity to 1×10⁻¹⁸ mol ATP: Matches the sensitivity specifications of instruments costing significantly more, ensuring even trace organic contamination is reliably detected with 90–110% ATP recovery rate.

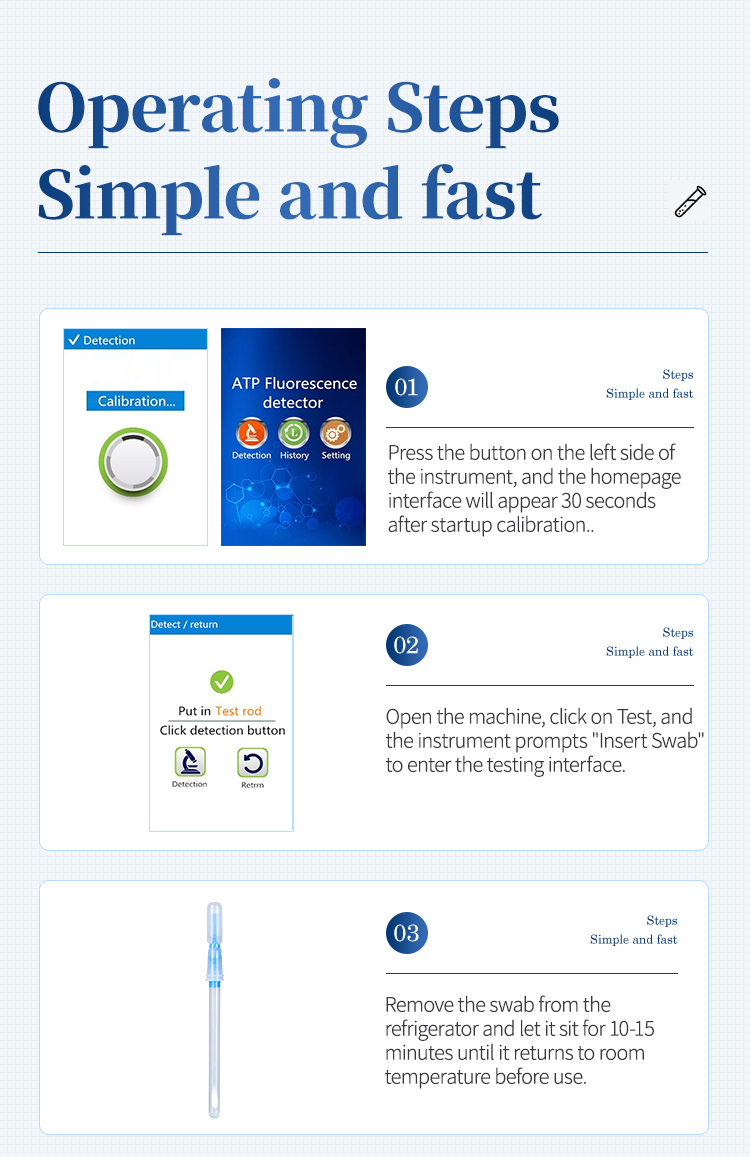

3. Automatic 30-Second Self-Calibration: Built-in self-calibration light source verifies sensor performance at every startup, eliminating recurring external calibration costs while maintaining measurement accuracy.

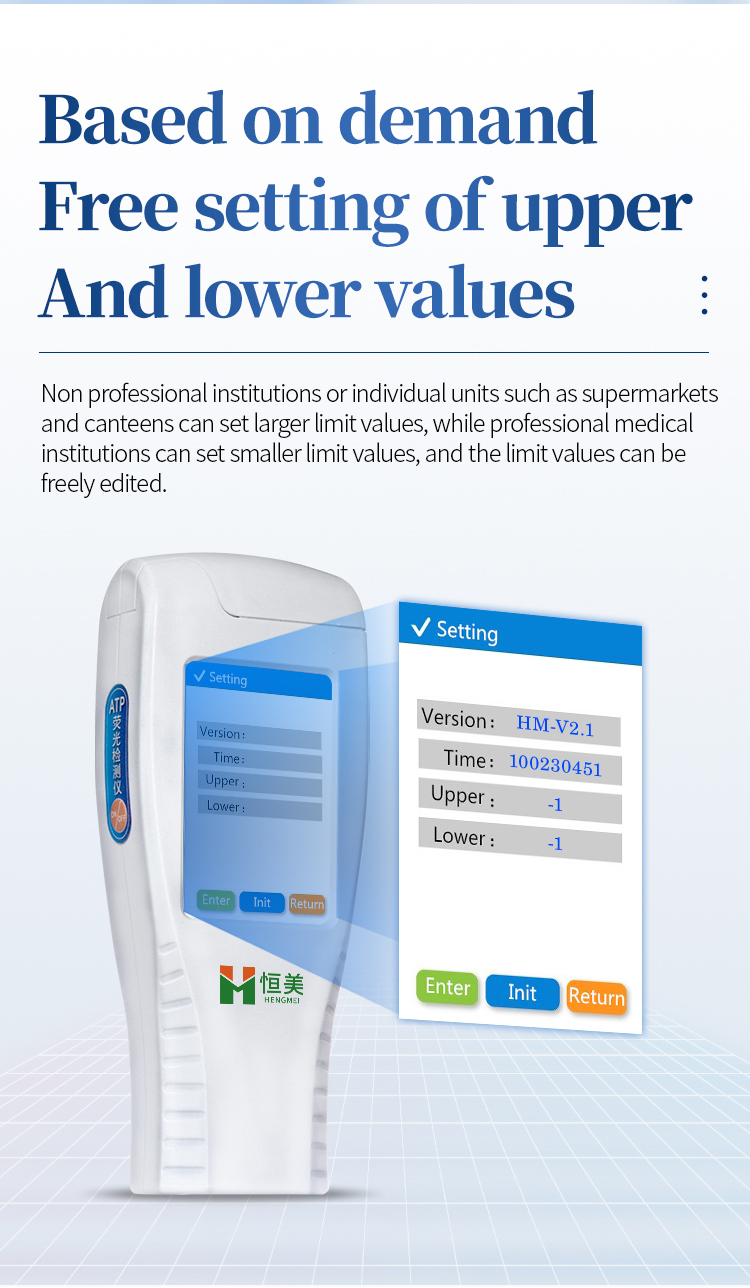

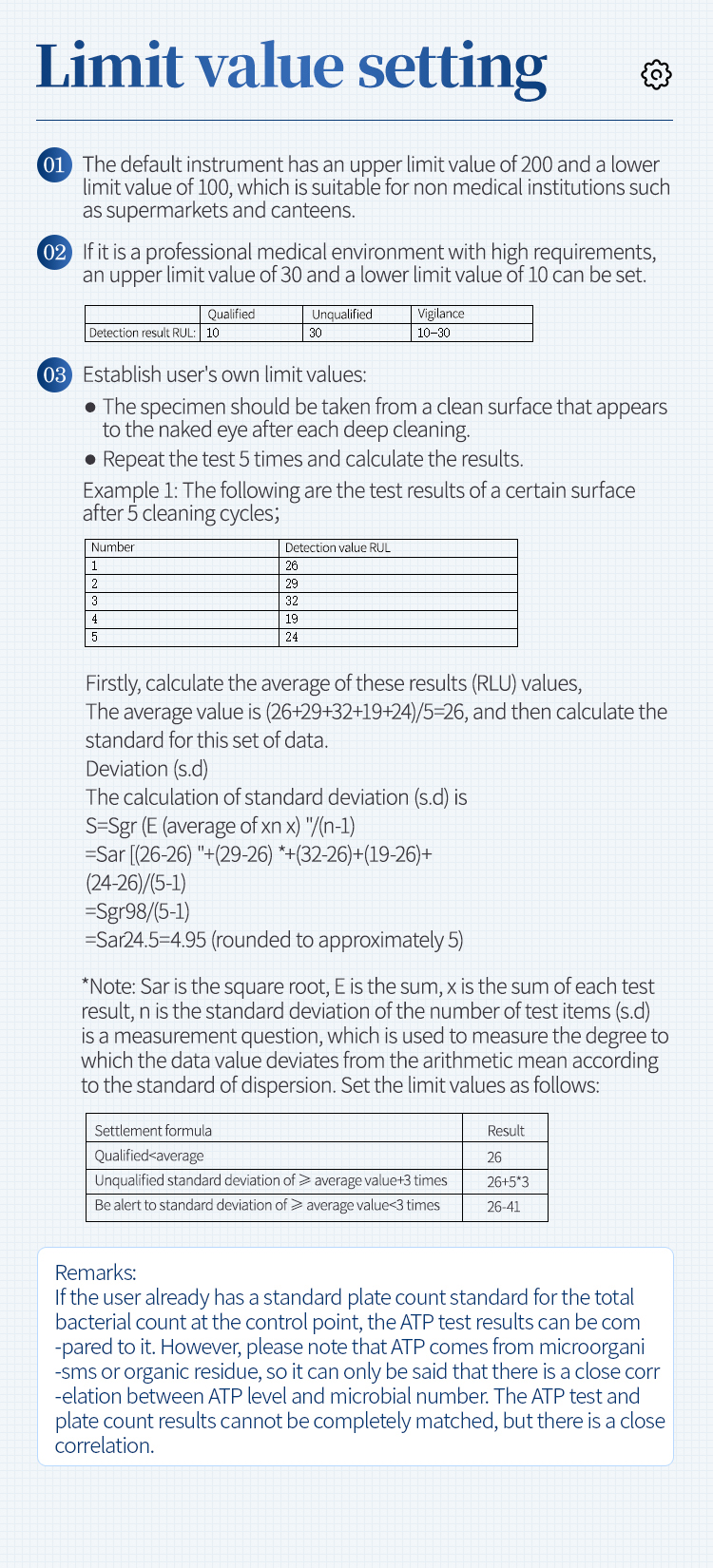

4. Configurable RLU Thresholds by Surface Type: Establish evidence-based cleanliness standards for different surface categories with automatic on-screen pass/fail indication—food contact surfaces below 150 RLU, non-contact floors below 500 RLU.
5. 32-Bit High-Speed Processor: Reliable processing chip handles rapid data throughput for consistent measurement across extended testing sessions in production environments.

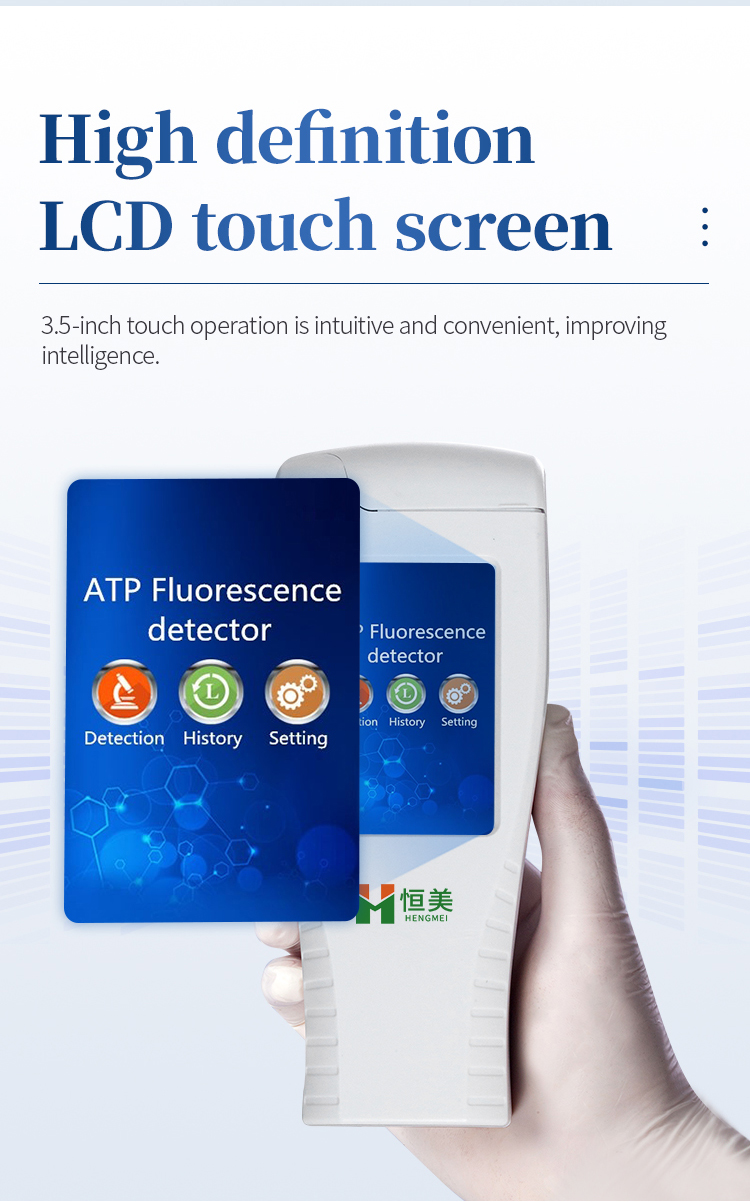

6. 3.5-Inch High-Precision Graphical Touchscreen: Clear, intuitive interface replaces traditional button-based operation, reducing training requirements for multi-shift workforces.

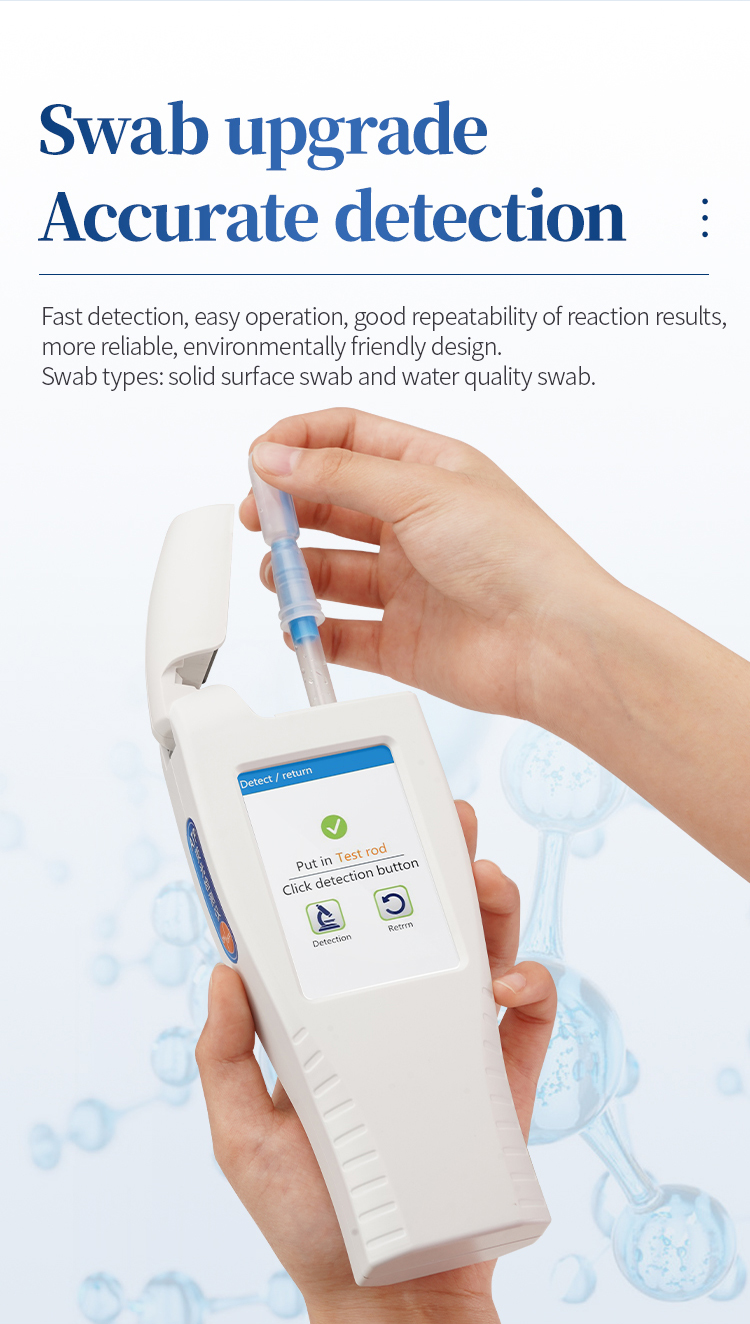

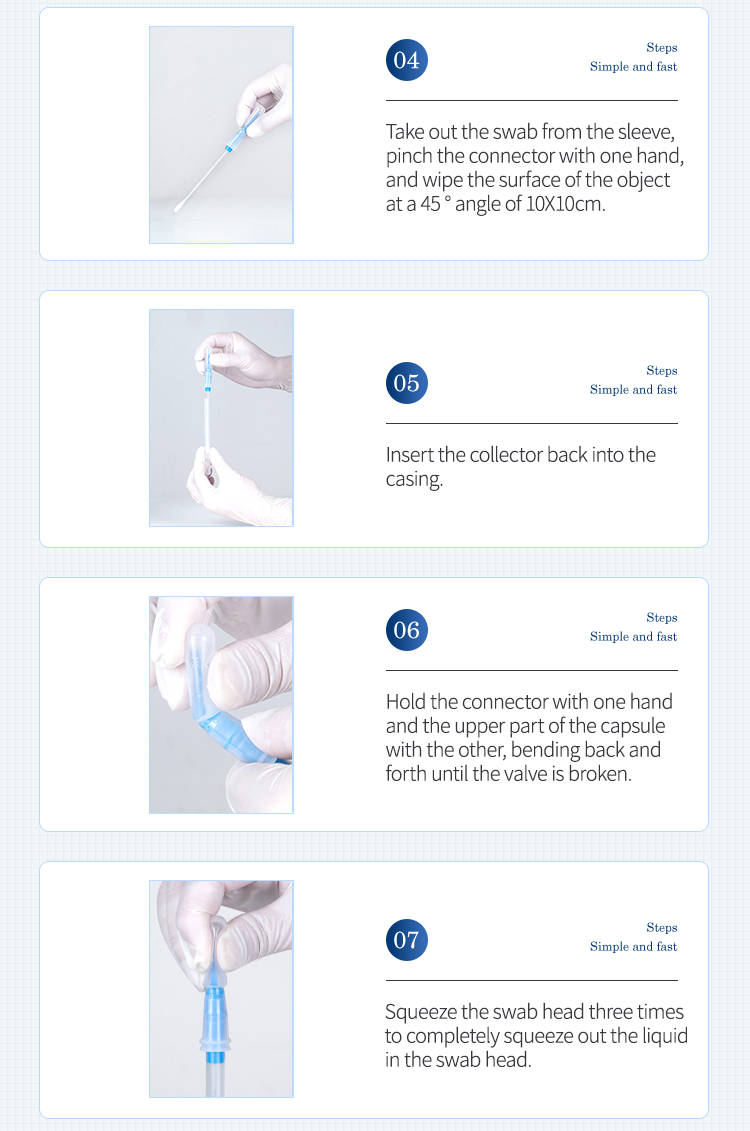

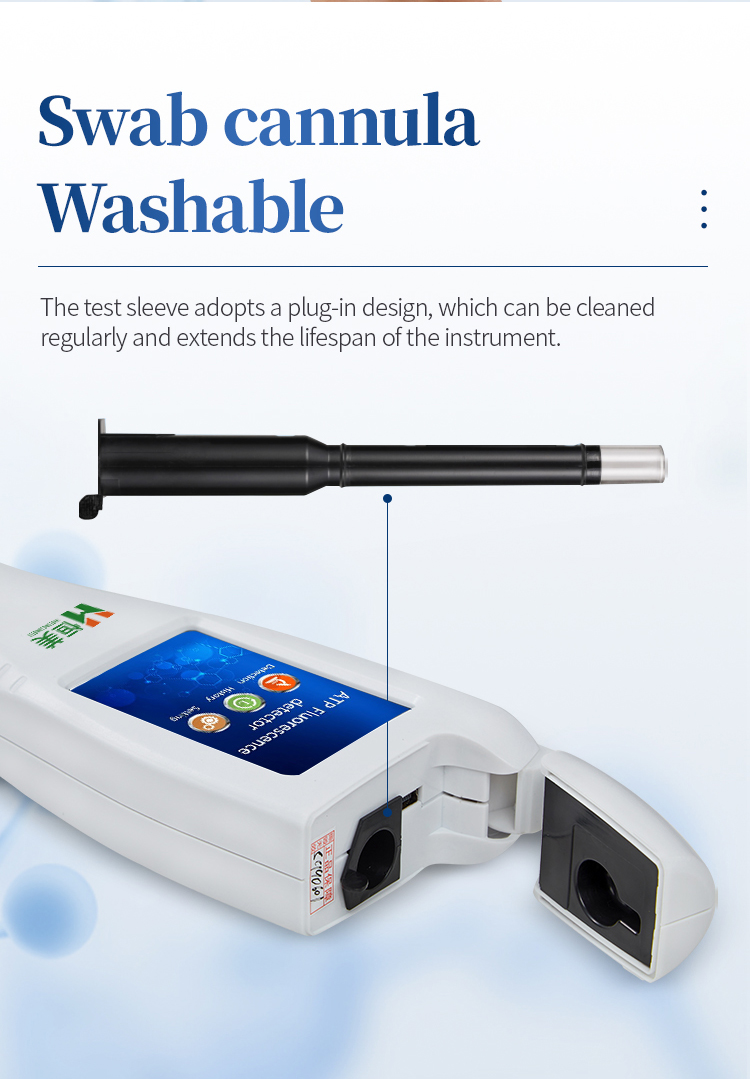

7. Dual Swab System: Accepts pre-moistened solid surface swabs for equipment and environmental monitoring plus water quality swabs with calibrated uptake tips for consistent liquid sample testing.
8. Liquid-Stable Luciferase Reagent Technology: Pre-moistened integrated swabs with liquid-stable enzyme chemistry eliminate operator variability in reagent preparation and ensure consistent light output across operators and shifts.

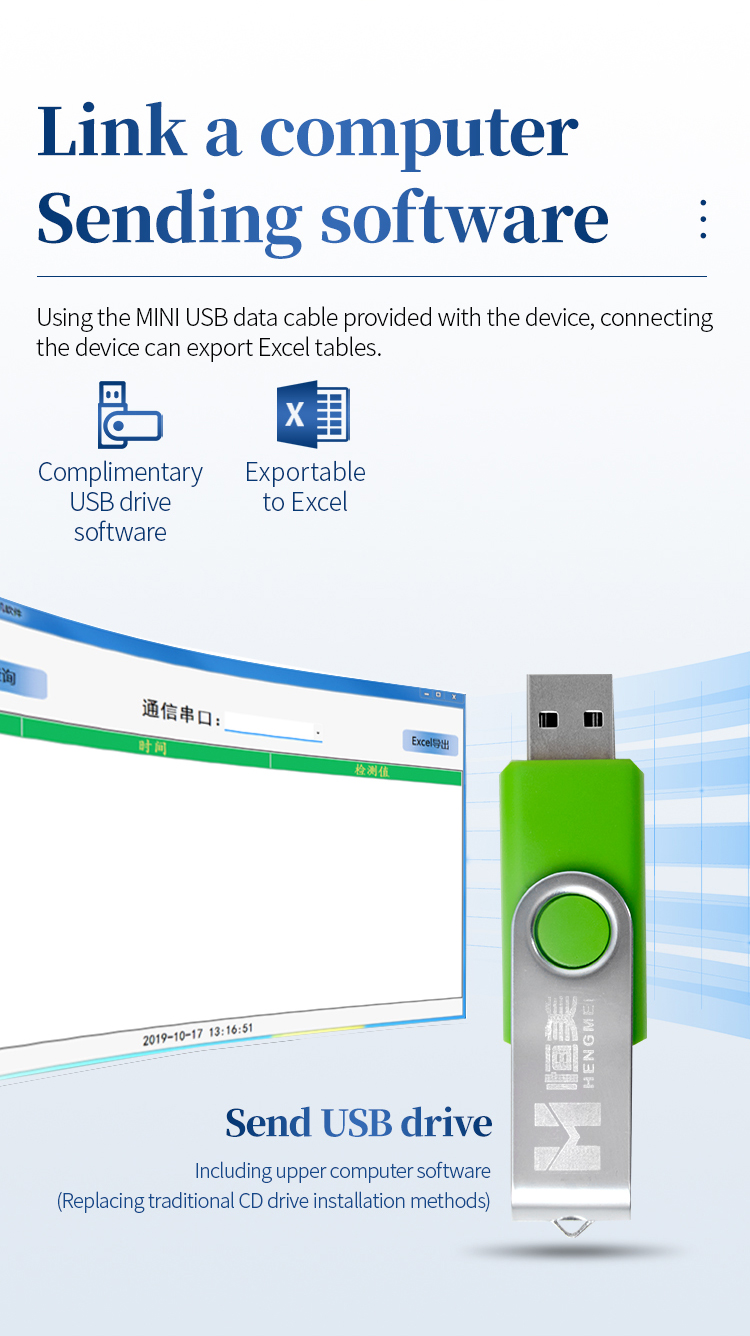

9. miniUSB PC Connectivity: Transfer test data to a computer via USB for record-keeping and basic trend tracking using the included PC analysis software and U盘 driver.

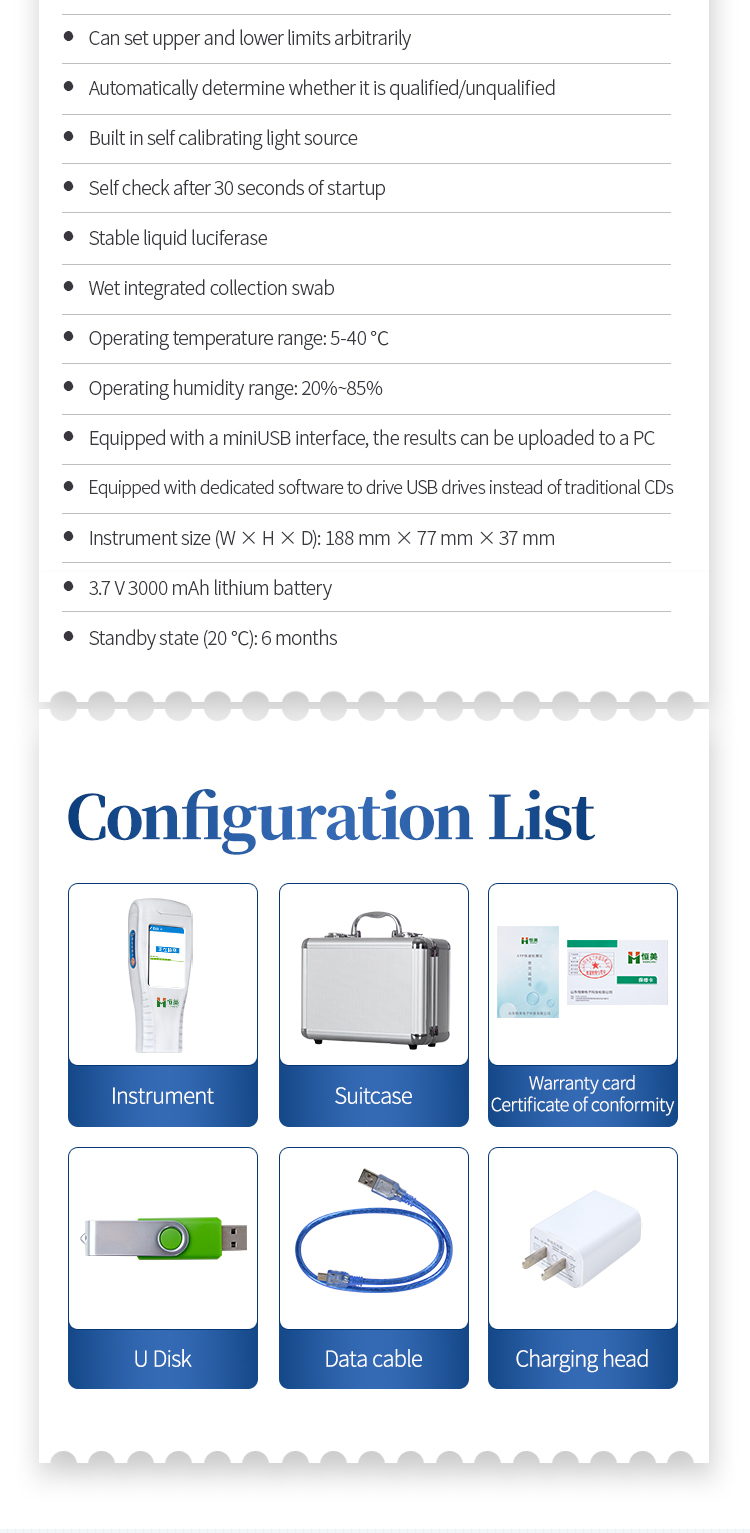

10. Rugged Portable Design: 3,000 mAh lithium battery for full-shift operation, 188×77×37 mm compact dimensions, operating temperature 5–40°C and humidity 20–85% for reliable field use.

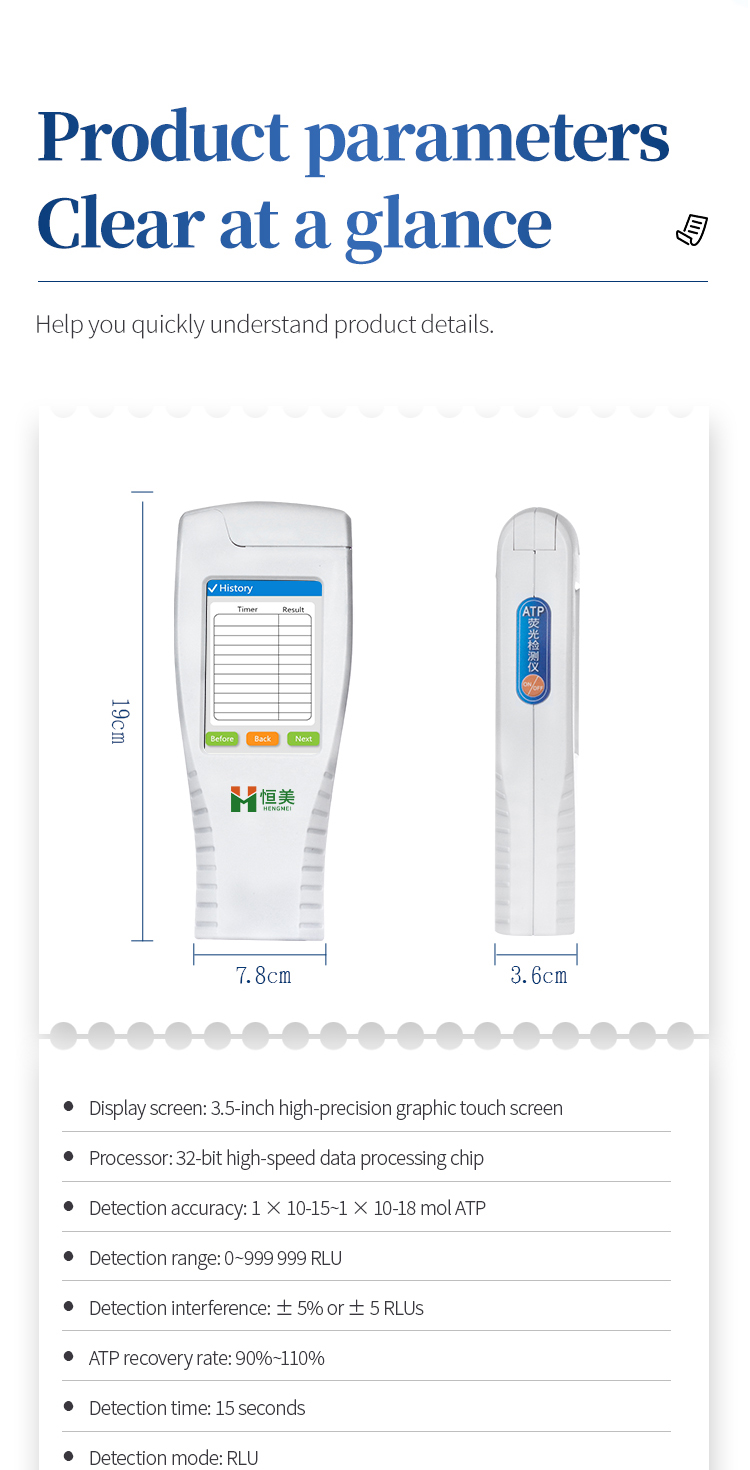

Technical Specifications
