Product Introduction

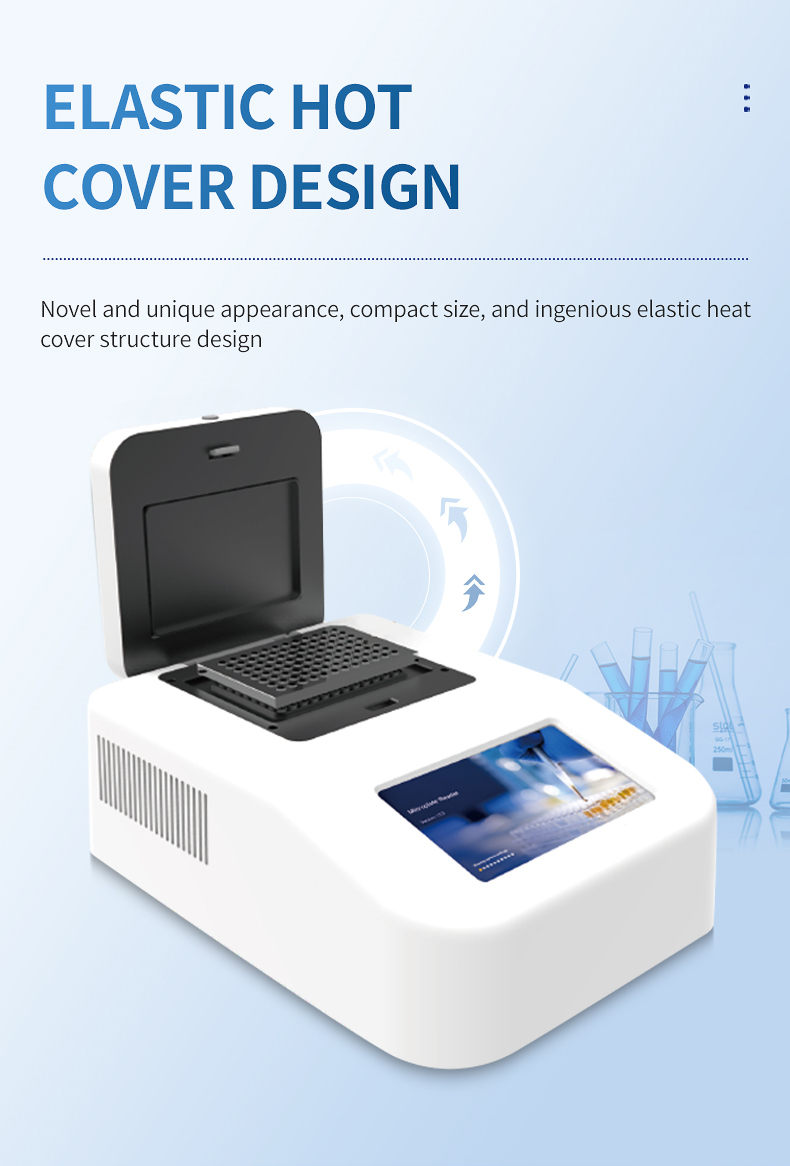

1. Novel and unique appearance, compact size, clever elastic hot cover structure design

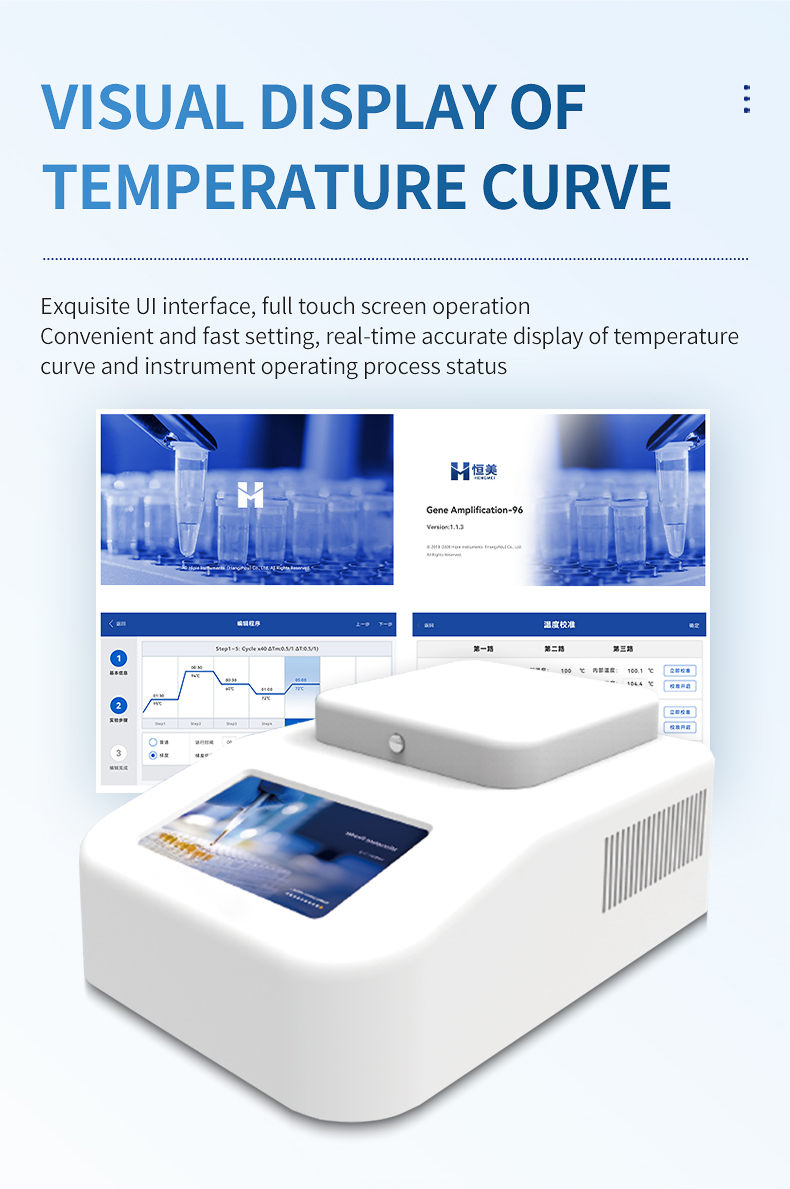

2. Intuitive display of temperature curve, convenient and fast setting, real-time and accurate display of temperature curve and instrument operation process status

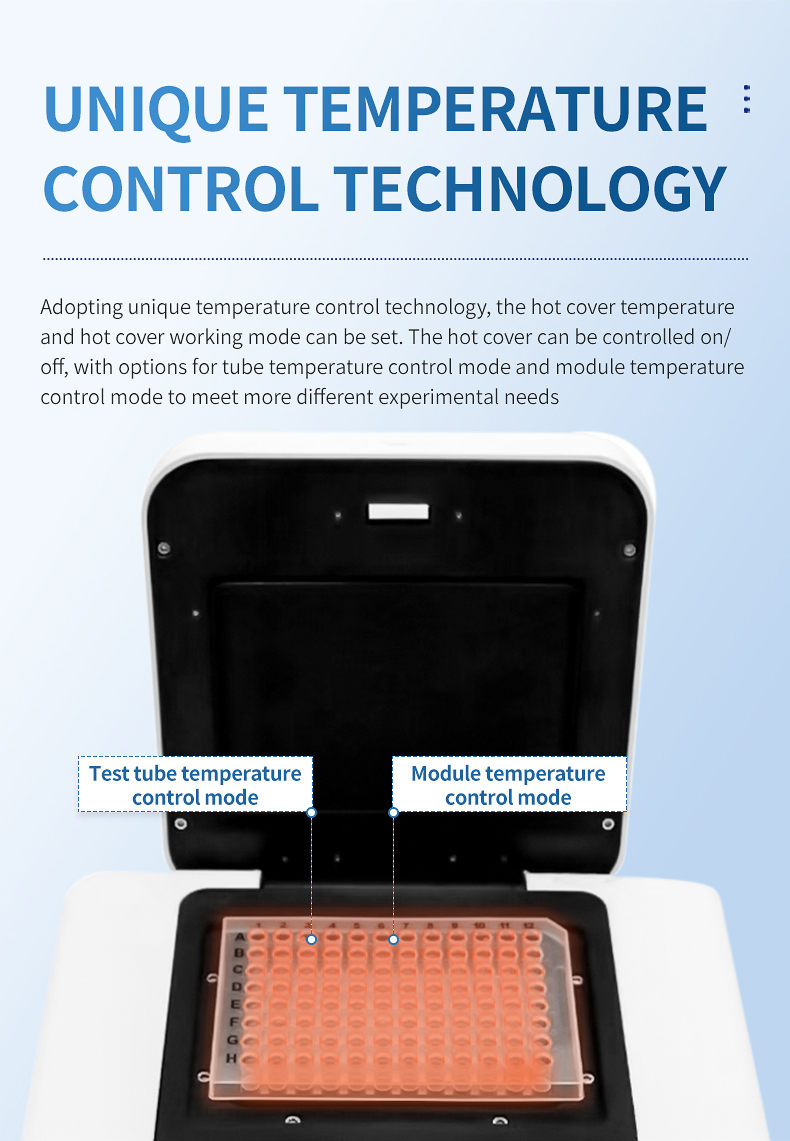

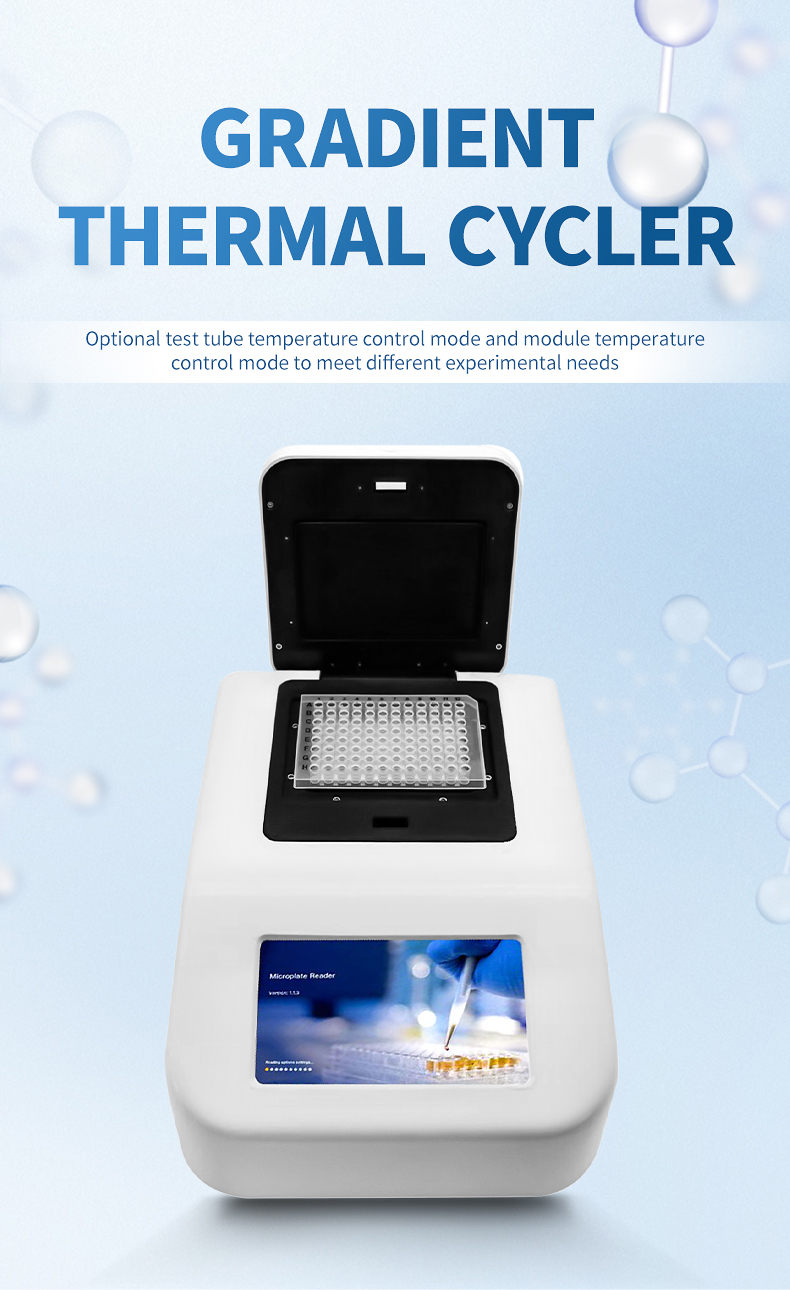

3. ※ Adopting unique temperature control technology, the hot cover temperature and hot cover working mode can be set. The hot cover can be controlled by switch, and the test tube temperature control mode and module temperature control mode can be selected to meet more different experimental needs

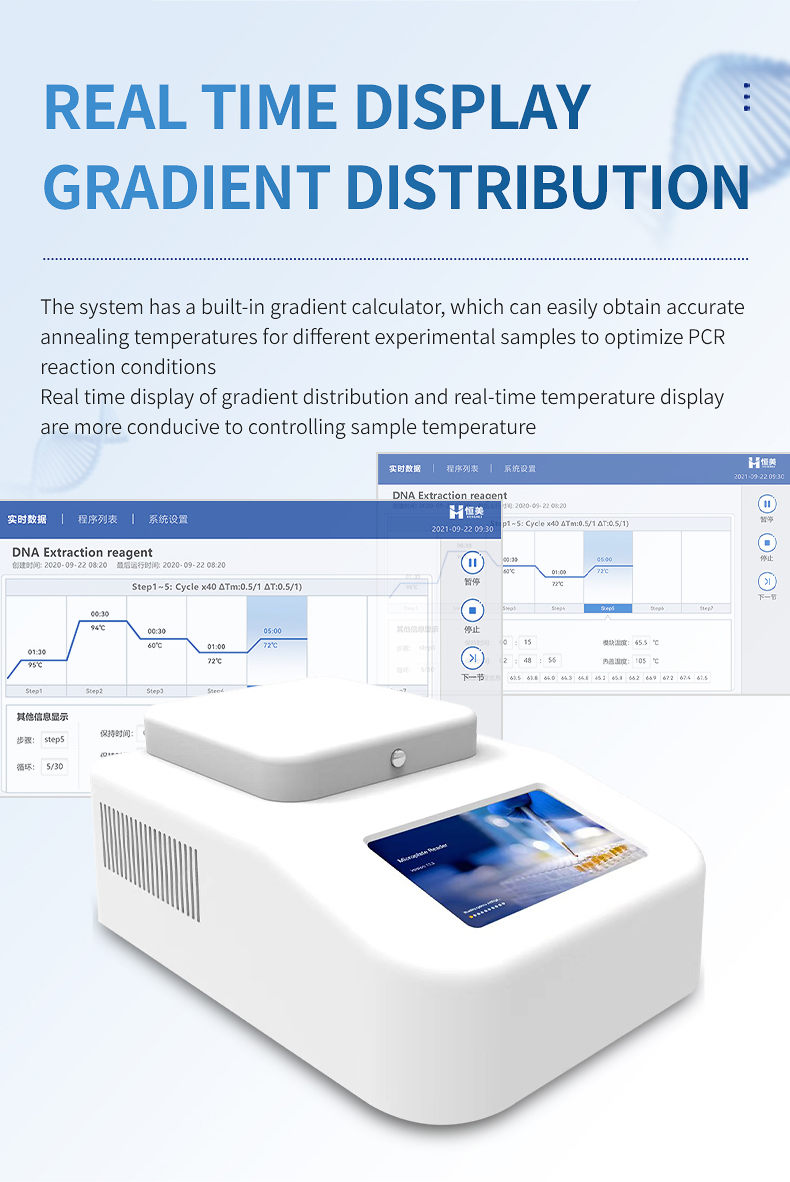

4. The system has a built-in gradient calculator, which can easily obtain accurate annealing temperatures for different experimental samples to optimize PCR reaction conditions. Real time gradient distribution is displayed, and real-time temperature display is more conducive to controlling sample temperature

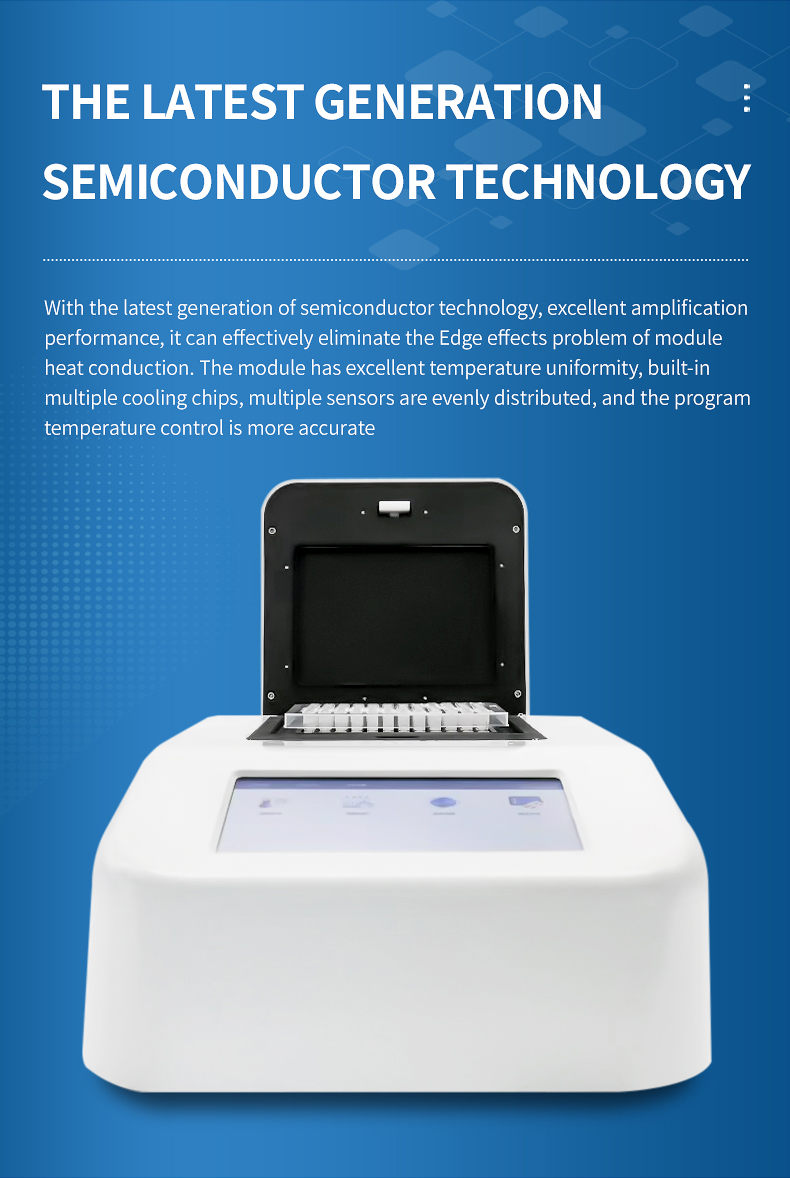

5. ※ Adopting the latest generation semiconductor technology, excellent amplification performance, effectively eliminating edge effects caused by module thermal conduction, excellent temperature uniformity of the module, built-in multiple cooling chips, multiple sensors evenly distributed, and more precise temperature control program

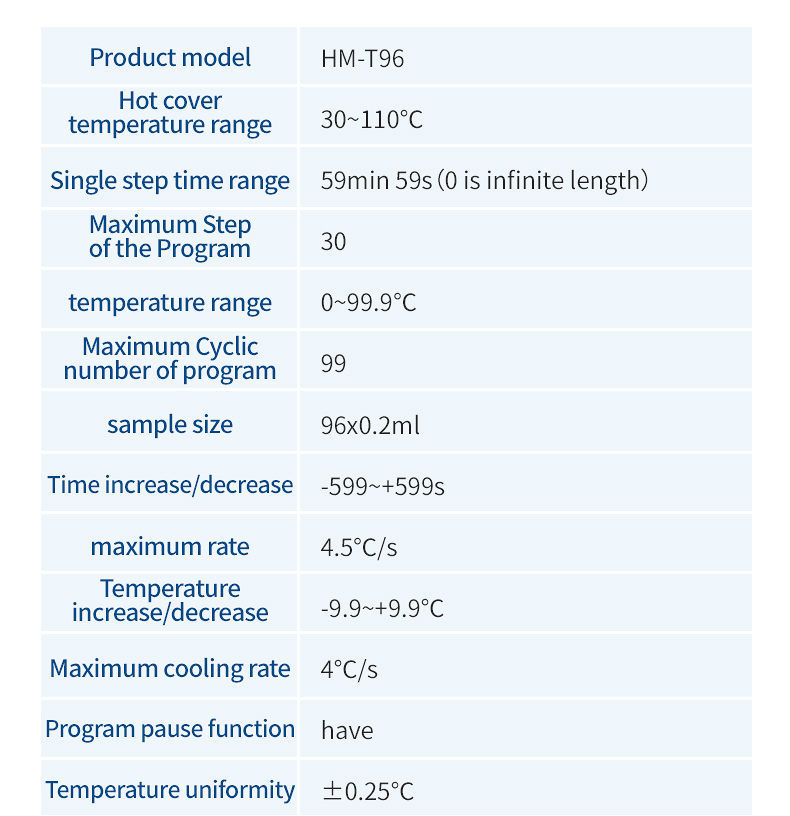

6. Hot lid temperature range: 30-110 ℃
7. Single step time range of 59 minutes and 59 seconds (0 is infinite)
8. Maximum program steps 30
9. Temperature range: 0~99.9 ℃
10. Maximum number of loops in the program is 99
11. Sample size 96x0.2ml
12. Time increment/decrement -599~+599s
13. Maximum heating rate 4.5 ℃/s
14. Temperature increase/decrease -9.9~+9.9 ℃
15. Maximum cooling rate 4 ℃/s
16. The program pause function has
17. Temperature uniformity soil 0.25 ℃

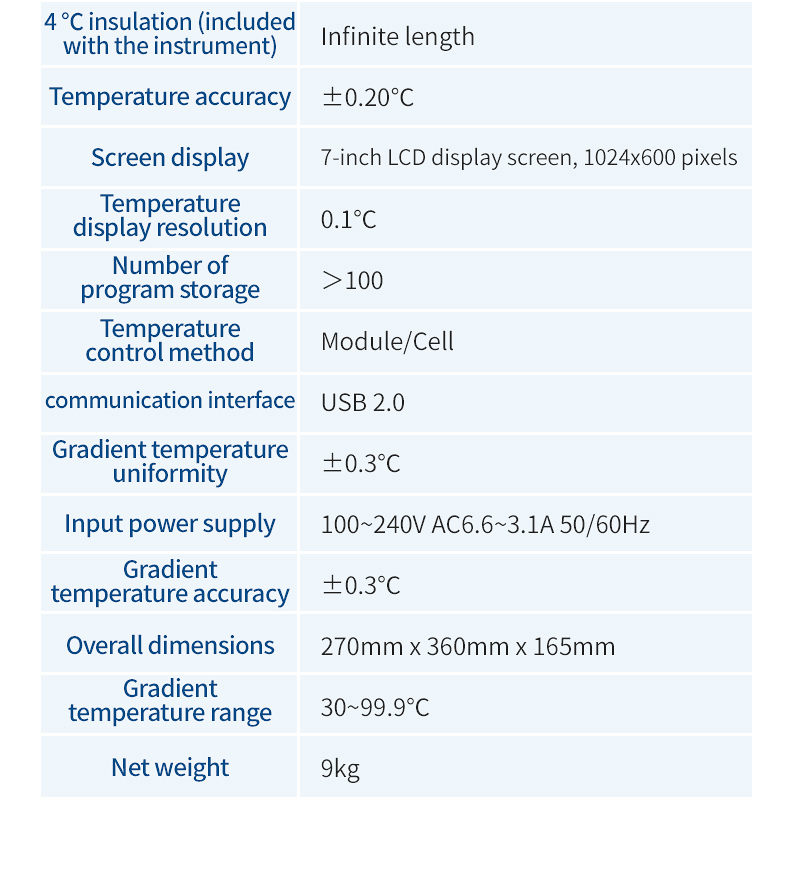

18. 4 ℃ insulation {included in the instrument} infinite length
19. Temperature accuracy soil 0.20 ℃
20. 7-inch LCD display screen, 1024x600 pixels
21. Temperature display resolution 0.1 ℃
22. Program storage quantity>100
23. Temperature control mode module/test tube
24. Communication interface USB 2.0
25. Gradient temperature uniformity soil 0.3 ℃
26. Input power supply 100~240V AC 6.6~3.1A 50/60Hz
27. Gradient temperature accuracy soil 0.3 ℃

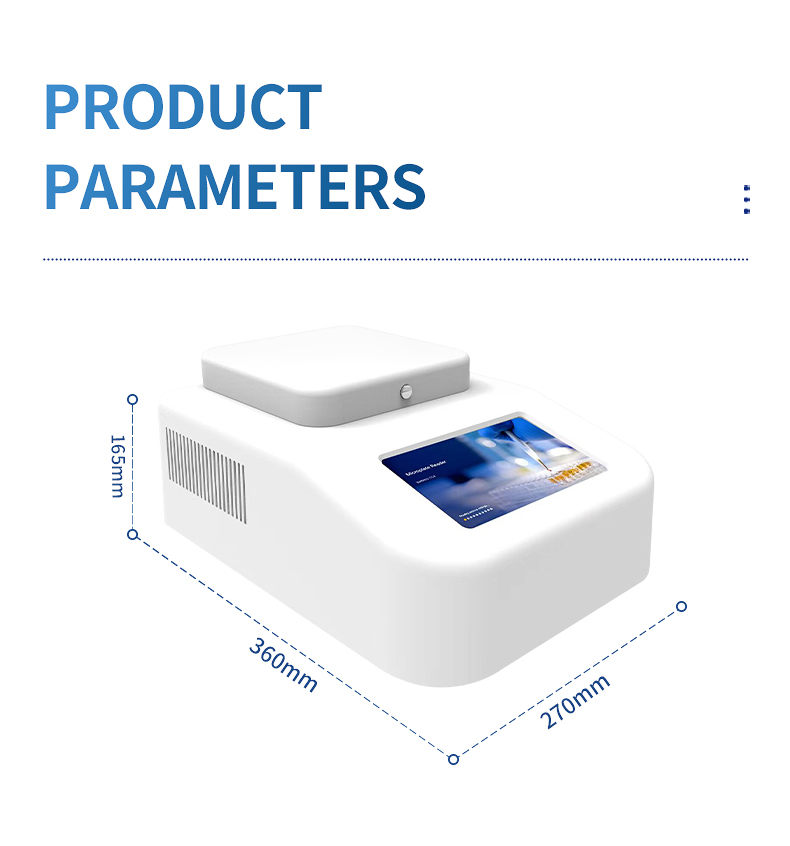

28. Dimensions 270x360x165mm
29. Gradient temperature range: 30~99.9 ℃
30. Net weight 9kg
