Product Overview

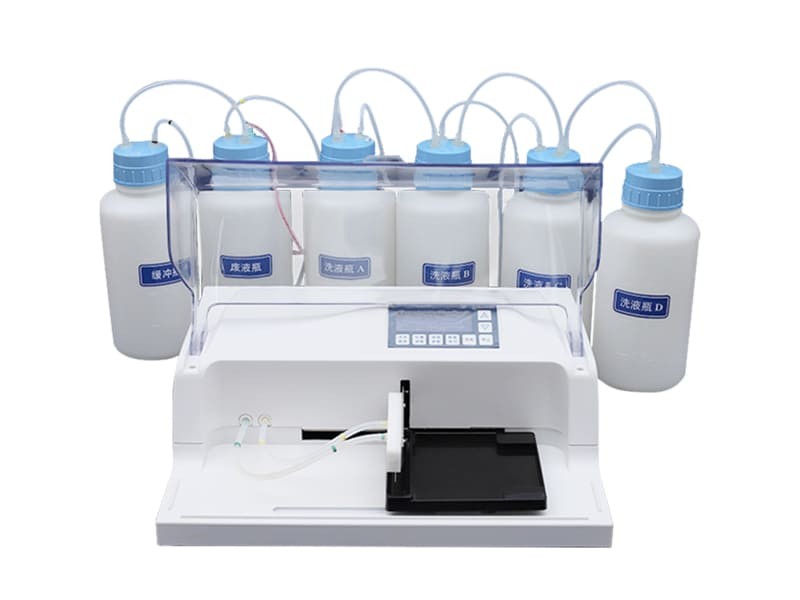

The HM-ZX02 from HM Instruments is an automatic microplate washer for laboratories that need programmable washing between enzyme immunoassay steps. It combines touchscreen operation with automatic pipeline rinsing and supports either full-plate washing or selected strips.
The wash system uses 8- or 12-needle heads, two-point aspiration and bottom rinsing. Fine adjustment of liquid pressure allows washing settings to be adapted to the procedure. Optional expansion to 2 or 4 wash-liquid channels is available for workflows requiring more than one wash solution; select the liquid-channel configuration when ordering.
Key Features
- Touchscreen operation with storage for 600 user-defined wash programs.
- Automatic pipeline-rinsing programs run after washing without a separate manual flush command.
- Full-plate or selected-strip modes, with 1–12 strips and 1–99 wash cycles selectable.
- Soaking and shaking can each be set from 0 to 24 hours.
- Two-point aspiration, bottom rinsing and residual/waste-liquid overflow alarm.
- Optional 2- or 4-channel wash-liquid configuration for multi-liquid workflows.
Applications
Use this washer for programmed washing of microplates in enzyme immunoassay procedures. Full-plate mode supports complete batches; selected-strip mode allows only the required strips to be washed. Flat-, U- and V-bottom plates are supported.
Set wash cycles, soaking, shaking and aspiration to match the assay procedure and the plate in use. Optical measurement is performed with a separate microplate reader after the required assay steps.
Technical Specifications
| Parameter | Specification |
|---|---|
| Control interface | Touchscreen |
| Wash-liquid expansion | Optional 2- or 4-channel configuration |
| Wash head | 8 or 12 needles |
| Washing modes | Full plate or selected strips |
| Wash strips | 1–12 |
| Wash cycles | 1–99 |
| Soaking time | 0–24 hours |
| Shaking time | 0–24 hours |
| Residual liquid | <1 µL per well |
| User programs | 600 |
| Pipeline rinse | Automatic rinsing programs after washing |
| Aspiration time | 0.1–9.9 seconds, adjustable |
| Aspiration design | Dual-pump system; two-point aspiration |
| Plate-bottom formats | Flat, U and V bottoms |
Related Equipment
For the plate-reading stage, view the HM-96A microplate reader and HM-96B ELISA reader.
Operation and Support
Select a stored program or define the washing sequence for the assay. Choose the required strips and cycles, set soaking and shaking as needed, and arrange pipeline rinsing as part of the washing workflow.
Are multiple wash-liquid channels standard?
The 2- and 4-channel wash-liquid arrangements are optional configurations. Select the number of liquid channels for your procedure when ordering. These liquid channels are separate from the 8- or 12-needle wash-head specification.
How does this model differ from HM-ZX01?
HM-ZX02 adds touchscreen operation, automatic pipeline rinsing and optional multi-liquid expansion. It stores 600 programs and supports shaking settings up to 24 hours; HM-ZX01 uses LCD menus, stores 120 programs and supports shaking up to 600 seconds.
